Bike carrier for Fiat Ducato II (H2) CARRY BIKE FIAMMA - between 1994 and 1999 - restyled version 2023

Discover this new 2023 version of the CARRY BIKE Fiamma bicycle rack for Fiat Ducato II (H2) with double rear doors. Designed specifically for Fiat Ducato II vans marketed between 1994 and 1999, you can install up to 2 conventional (non-electric) bicycles. Fitted with a Quick Pro rail, it ensures fast, secure locking of the wheel to the rail. Its light weight (6.9 Kg) makes it easy to assemble and disassemble.

Features:
- Doors can be opened with the bike rack installed.
- Top brackets: width: 34 mm.
- Material resistance: anodized aluminum.
- Max. load: bike rack: 35 Kg; rail: 15 Kg.
Supplied with 2 Quick Pro rails, 1 Bike-Block Pro1, 1 Bike-Block Pro2, 1 "Security Strip" strap, fixing brackets, mounting brackets.

Components/dimensions:
- Anodized aluminum frame.
- Finish: silver.

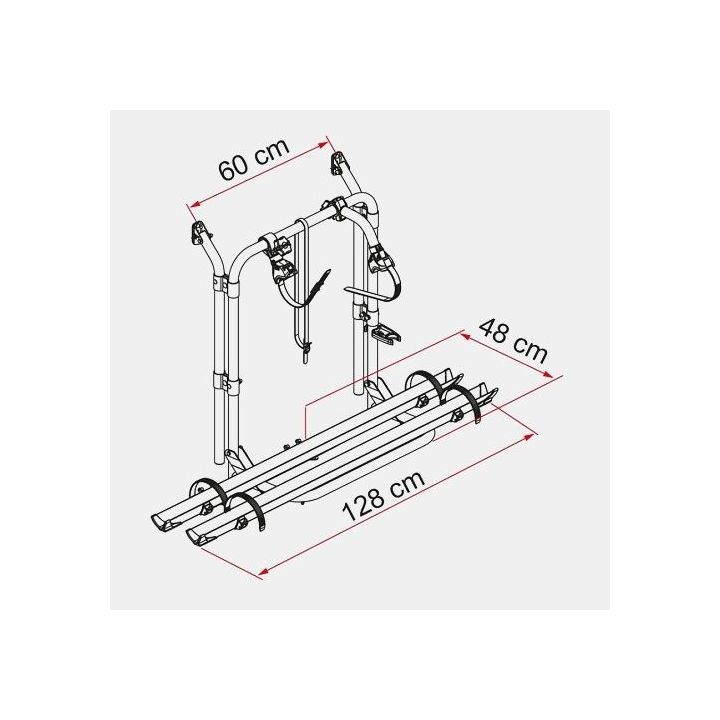

- Overall dimensions:
- Wheelbase: horizontal: 58 - 62 cm.
- Width: 128 cm. Depth: 48 cm.
- Weight: 6.9 Kg.

Ref FIAMMA 02096-16

Caution: the Carry Bike rack must be installed on the right-hand door of the vehicle, and the ladder on the left-hand door.lowered position: use the license plate bracket with traffic lights (see option). The attachment to the Bike Block arm frame can be turned through 90°. Do not hesitate to rotate this bracket to adapt it to the frame position.
