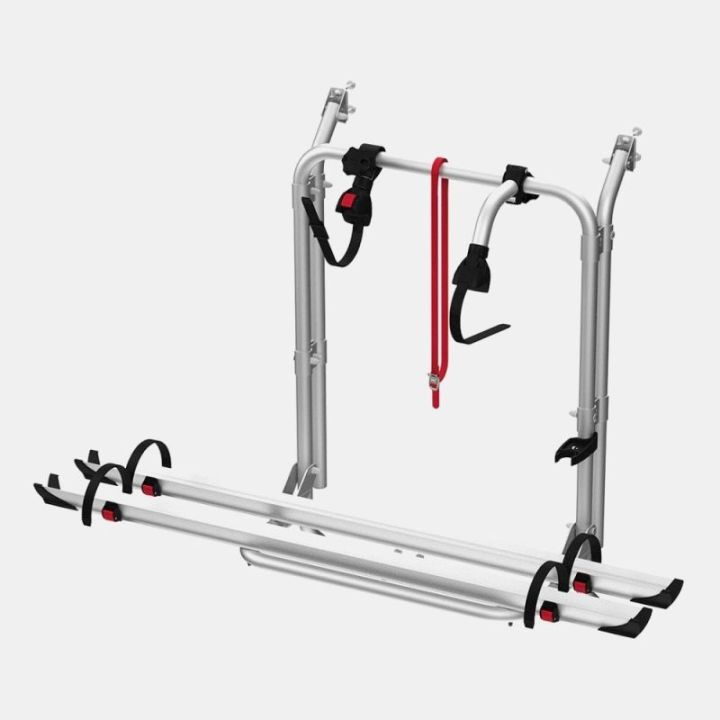

Bike carrier for Peugeot Boxer I (H2) CARRY BIKE FIAMMA - between 1994 and 1999 - restyled version 2023

Discover this new 2023 version of the CARRY BIKE Fiamma bicycle rack for Peugeot Boxer I (H2) with double rear doors. Designed specifically for Peugeot Boxer I vans marketed between 1994 and 1999, you can install up to 2 classic (non-electric) bicycles. Equipped with a Quick Pro rail, it ensures fast, secure locking of the wheel to the rail. Its light weight (6.9 Kg) makes it easy to assemble and disassemble.

Features:
- Doors can be opened with the bike rack installed.
- Top brackets: width: 34 mm.
- Material resistance: anodized aluminum.
- Max. load: bike rack: 35 Kg; rail: 15 Kg.
Supplied with 2 Quick Pro rails, 1 Bike-Block Pro1, 1 Bike-Block Pro2, 1 "Security Strip" strap, fixing brackets, mounting brackets.

Components/dimensions:
- Anodized aluminum frame.
- Finish: silver.

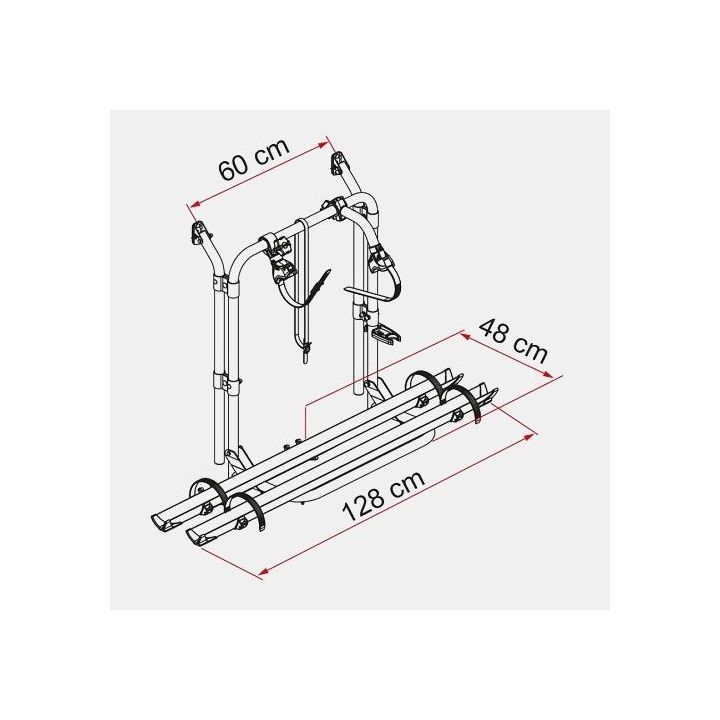

- Overall dimensions:
- Wheelbase: horizontal: 58 - 62 cm.
- Width: 128 cm. Depth: 48 cm.
- Weight: 6.9 Kg.

Ref FIAMMA 02096-16

Caution: the Carry Bike rack must be installed on the right-hand door of the vehicle, and the ladder on the left-hand door.lowered position: use the license plate bracket with traffic lights (see option). The attachment to the Bike Block arm frame can be turned through 90°. Do not hesitate to rotate this bracket to adapt it to the frame position.
