Low-capacity isolating coupler 50A/maxi 70A SCHEIBER -12V- 1 battery

Indispensable for all motorhomes fitted with an auxiliary battery, it recharges it slowly and automatically while driving, thus avoiding excessive flow from the alternator and the original circuit. Not for connection to lithium batteries.

Model for 1 auxiliary battery.
Max. battery capacity: 300 Ah.
Charging current: 50A nominal, 70A instantaneous (max).
Standby consumption < 50µA.
Motor battery voltage: 12V.
Auxiliary battery voltage: 12V.
Coupling information: yes.
Operating temperature: -20°C/ 50°C.
Cable cross-section: maximum 6mm².
Overall dimensions: 120 x 59 x 35 mm, case: 89 x 60 x 35 mm.
Fixing center distance: 105 mm.
Weight: 250 g

Product benefits:
- Protected main battery and alternator. Extended service life.
- Permanently charged auxiliary batteries.
- Automatic, unattended operation.
- Possibility of recharging the main battery via the charger, solar panel or wind turbine (useful during wintering).

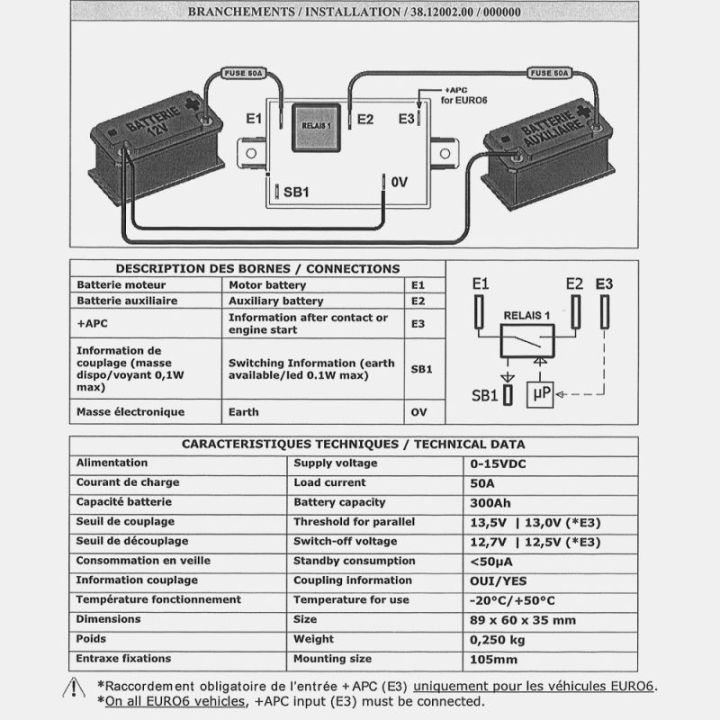

WARNING: Protect each battery outlet (terminal ) with a 50A MAXIFUSE fuse, not supplied.

We recommend placing the coupler as close as possible to the motor battery (never on top of it) and away from splashing water. Preferably use batteries of identical power /-10%.
