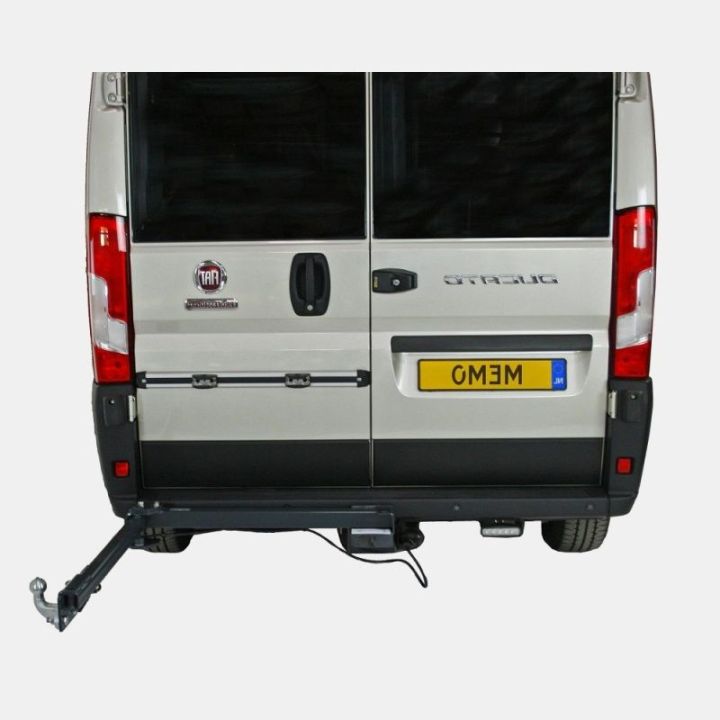

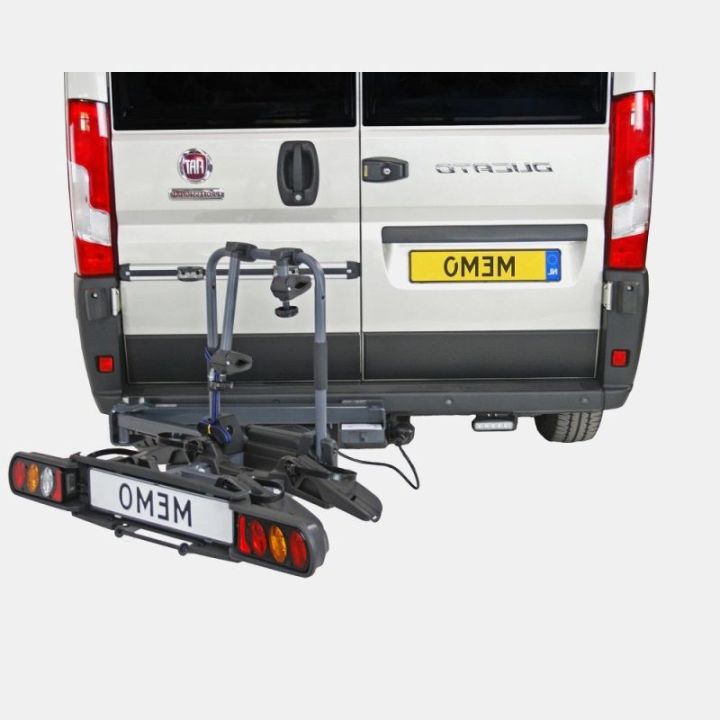

VAN SWING swivel module for Citroën Jumper after 06/2006 (L1 - L3) - 2 bikes - standard ball mounting - left-hand opening

The VAN SW ING swivel module is specifically designed for Citroën Jumper vehicles marketed from June 2006 (with a length of less than 6 m (L1 - L3)) AND fitted with a "standard" towball (see photo). Suitable for all vehicle models and sizes with double rear doors.
It is not suitable for any other type of towball (gooseneck, tool-free removable towball, etc.). Only the "standard" ball joint is compatible with this bike carrier.
Practical: the module pivots on the ball. There's no need to dismantle bikes to open the vehicle's rear doors, all without effort.
Mounted on chassis, not on vehicle tailgates and rear doors.

The advantages of this module:
- 60Kg load capacity (including bikes and bike carrier)
- Handy: pivots on the LEFT side (hinges mounted on the LEFT side), giving easy access to rear doors.

Technical specifications:
- Model: VAN SWING.
- Max. payload: 60Kg
- Composition: powder-coated galvanized steel support arm with aluminum components.
- Angle of rotation: 90° (with bikes), 110° (without bikes).
- Depth (folded): 20 cm.
- Width: 93 cm.
Hitch-mounted bike racks not included (available as optional extras).

Towing with the VAN SWING is prohibited. Assembly must be carried out by a qualified professional. VAN SWING must be mounted on an original, unmodified chassis.
