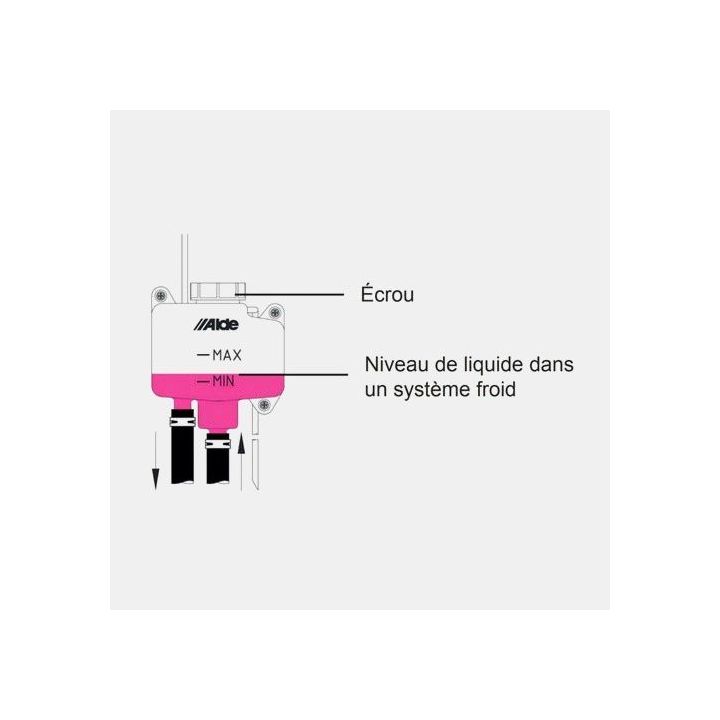

ALDE 2 L corner expansion vessel

The ALDE 2 L corner expansion vessel is a wall-mounted expansion vessel designed for connection to ALDE COMPACT 3020HE and 3030 boilers for installation in motorhomes, caravans and converted vans . It is reversible, to be adapted to the heating system pipes.

Features:
Capacity: 2 L
Dimensions: W 210 x H 231 (with cover and connecting pipe) x D 116 mm
Inlet/outlet diameter: ø 22 mm.
Fixing: wall-mounted at an angle.
Supplied with screws, wall mounting, circulation pump mounting nuts and drain hose.
Weight: 590 g

Réf ALDE: 3000495


Sold with a perforated plug for immersion circulator installation. If installation is carried out without an immersion circulator, a blanking membrane must be added.
